-Light volume, simple structure and convenient installation;
-It is mainly used for parts with smooth surface and workpieces with porousstructure. It is equipped with self closing valve, which can be effectivelygrasped even if there is partial leakage;
– It can be customized by directly contacting business personnel according
| Dimensional chart
|
|||||||
| Model | Airsupply pressure bar | Suctioncup diameter mm | Maximum vacuum -kPa | Maximumvacuum flow L/min | Maximum air consumption L/min | Air supply caliber | Weightg |
| BMB5.27X90.ES.L2 | 4-7 | 3 | 85 | 130 | 65 | G1/8 | 210 |
| BMB7.27X90.ES.L2 | 5 | 85 | 130 | 65 | G1/8 | 210 | |
| BMB9.27X90.ES.L2 | 7 | 85 | 130 | 65 | G1/8 | 210 | |
Dimensional chart |
||||
| Model | Air supply pressure bar | Suction cup diameter mm | Air supply caliber | SmWeightg |
| BMB5.15X600.AW | 4-7 | Ø5 | G1/8 | 700 |
| BMB8.15X600.AW | Ø8 | G1/8 | 700 | |

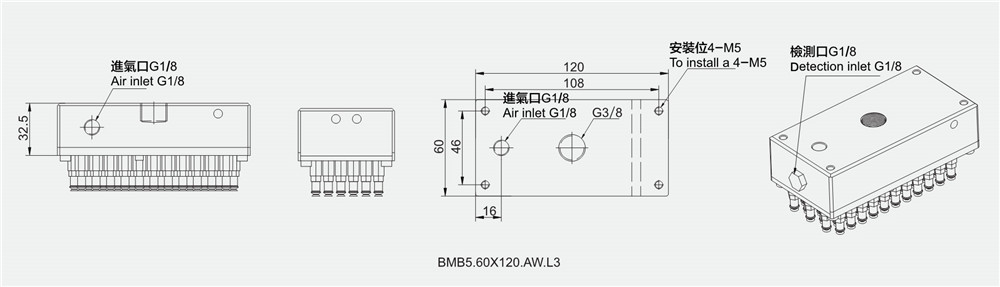

Dimensional chart |
|||||||
| Model | Airsupply pressure bar | Suctioncup diameter mm | Maximumvacuum -kPa | Maximumvacuumflow L/min | Maximum air consumption L/min | Airsupply caliber | mmWeightg |
| BMB5.60X120.AW.I_2 | 4-7 | 5 | 85 | 90 | 50 | G1/8 | 690 |
| BMB8.60X120.AW.L2 | 8 | 85 | 90 | 50 | G1/8 | 690 | |
