Product Category

1.5 fold corrugated

– 1.5 fold round corrugated suction cup for high dynamic handling of high temperature metal sheets up to 250 ℃;

-Handling pre-formed sheet metal parts with a corrugated shape foroptimum adaptability;

-Unloading after forming the part;

-Carrying thin aluminum without deformation and deep drawing;

Contact Us

Product Description

1.5 fold corrugated-Suction cup bracket unbuffered

Dimensional chart
Order code Parameter
① ② ③ ④ ⑤ A B C Model
Suction cup bracket type Suction cup code Suction cup type Material Takeover method
VPA 30 VBF N

S

PU

 6J

B01

 32 30 59 VPA 30 VBF ④ ⑤
40 41 31 60 VPA 40 VBF ④ ⑤
50 51 39 68 VPA 50 VBF ④ ⑤
60 61 43 72 VPA 60 VBF ④ ⑤
80 – – – –
100 – – – –

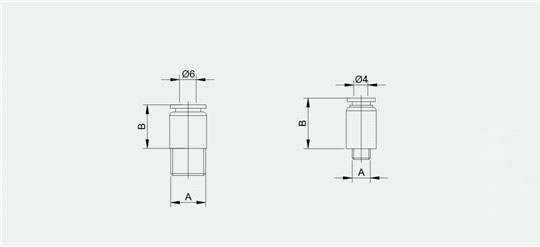

Dimensional chart Optional quick connector
Quick connection specification Pipe diameter A B
POC6-M5C Ø6 M5 14
POC6-01 G1/8 12
POC4-M5C Ø4 M5 14



1.5 fold corrugated-Suction cup bracket with cushion type (upright)

 Dimensional chart
Order code   Parameter
① ② ③ ④ ⑤ ⑥ ⑦



A





B





C





D





E





Model
Suction cup bracket type Suction cup code Buffer stroke Suction cup type Material Swing method Takeover method
 VPT 30 10
VBF 		  PU

N

  J

K

 6J

B01

 32 30 95 10 35 VPT 30-10 VBF ⑤⑥⑦
20 105 20 35 VPT 30-20 VBF ⑤⑥⑦
30 128 30 48 VPT 30-30 VBF ⑤⑥⑦
50 166 50 66 VPT 30-50 VBF ⑤⑥⑦
40 10 41 31 96 10 35 VPT 40-10 VBF ⑤⑥⑦
20 106 20 35 VPT 40-20 VBF ⑤⑥⑦
30 129 30 48 VPT 40-30 VBF ⑤⑥⑦
50 167 50 66 VPT 40-50 VBF ⑤⑥⑦
50 10 51 39 104 10 35 VPT 50-10 VBF ⑤⑥⑦
20 114 20 35 VPT 50-20 VBF ⑤⑥⑦
30 137 30 48 VPT 50-30 VBF ⑤⑥⑦
50 175 50 66 VPT 50-50 VBF ⑤⑥⑦
60 10 61 43 108 10 35 VPT 60-10 VBF ⑤⑥⑦
20 118 20 35 VPT 60-20 VBF ⑤⑥⑦
30 141 30 48 VPT 60-30 VBF ⑤⑥⑦
50 179 50 66 VPT 60-50 VBF ⑤⑥⑦
80 30 81 50 170 27 68 VPT 80-50 VBF ⑤⑥⑦
100 30 101 57 177 27 68 VPT 100-50 VBF ⑤⑥⑦



Dimensional chart Optional quick connector
Quick connection specification Pipe diameter A B
POC6-M5C Ø6 M5 14
POC6-01 G1/8 12
POC4-M5C Ø4 M5 14

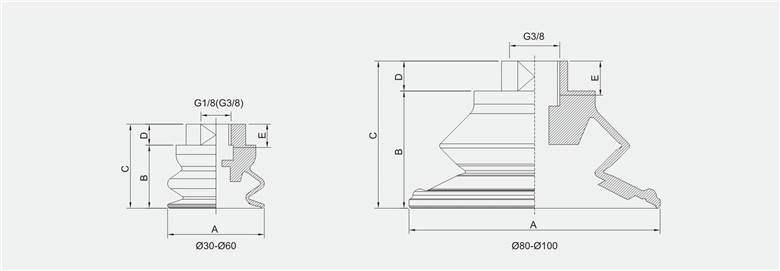

1.5 fold corrugated-Fixed connector type

Dimensional chart (external thread)
Order code Parameter
① ② ③ ④ A B C D E Model
Suction cup bracket type Suction cup code Material Fixed joint
VBF 30 PU

N

 18M

38M

 32 21 36.5 9 6.5 VBF30PU – 18M
40 41 22 37.5 VBF40PU – 18M
50 51 27 47 12 9 VBF50PU – 18M
60 61 31 51 VBF60PU – 18M
80 81 40 60 VBF80PU – 38M
100 101 47 67 VBF100PU – 38M



Dimensional chart (internal thread)
 Order code Parameter
① ② ③ ④

A



 B



 C D E Model
Suction cup bracket type Suction cup code Material Fixed joint
VBF 30 PU

N

 18F

38F

 32 21 28 7 9 VBF30PU – ④
40 41 22 29 VBF40PU – ④
50 51 27 37 10

12



 VBF50PU – ④
60 61 31 41 VBF60PU – ④
80 38F 81 40 50 VBF80PU – 38F
100 101 47 57 VBF100PU – 38F
